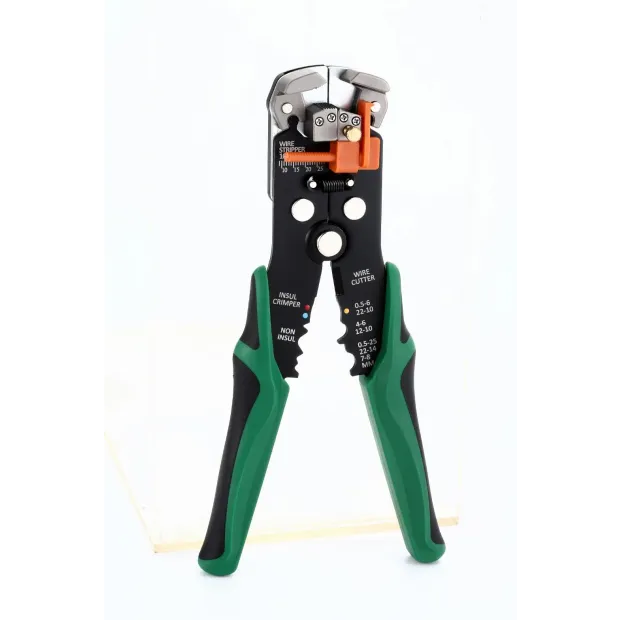

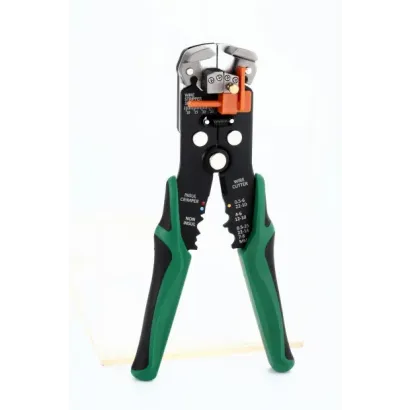

EA209N83 Multi-function crimping tool

EA209N83 Multi-function crimping tool

Multi-function crimping tool
/
/
/
/
/
/
  • 11.webp
  • 12.webp
  • 13.webp
  • 14.webp
  • 15.webp
  • 16.webp
DETAIL
Function :

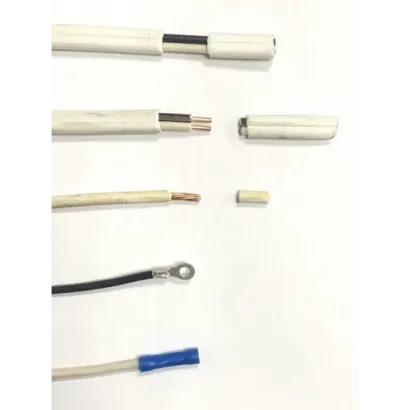

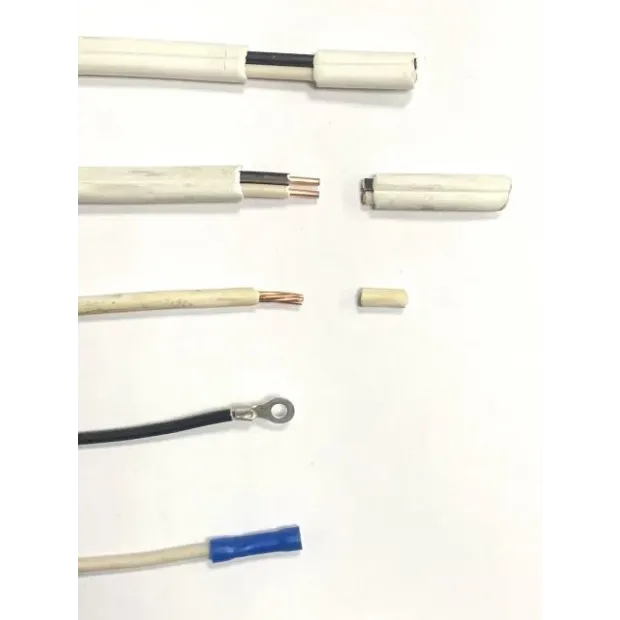

Strip & cut wire from 8-30AWG (0.2-8mm²).
With additional swivel knob, adjust to strip wire maximum
8AWG (8mm²), minimum 30AWG (0.05mm²).

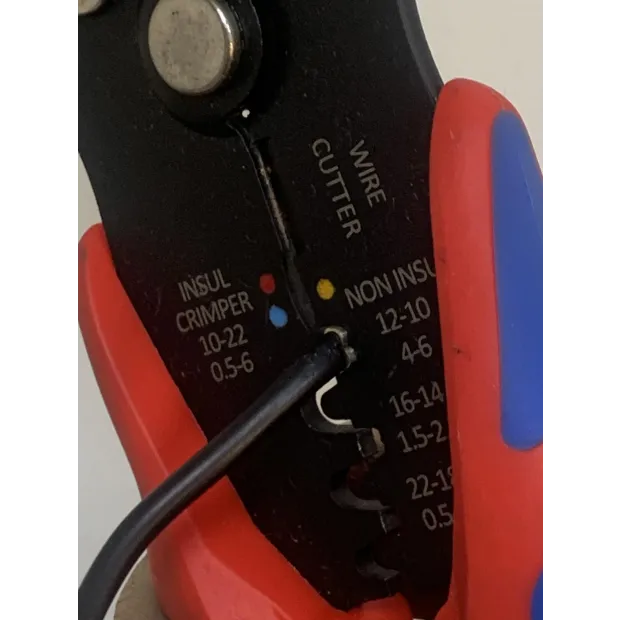

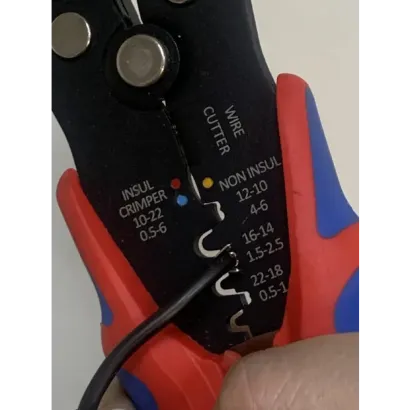

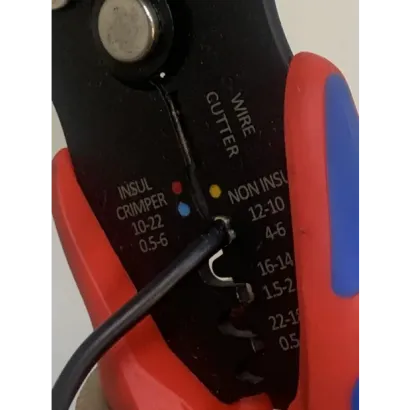

Crimp non-insulated terminals 10-22AWG (0.5 to 6.0 mm²).

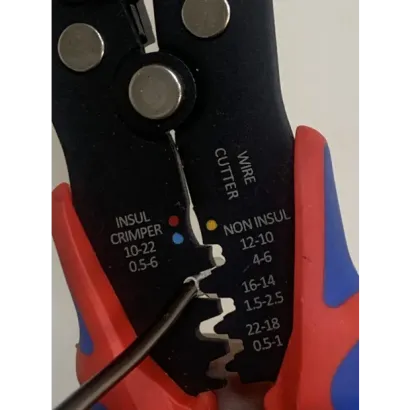

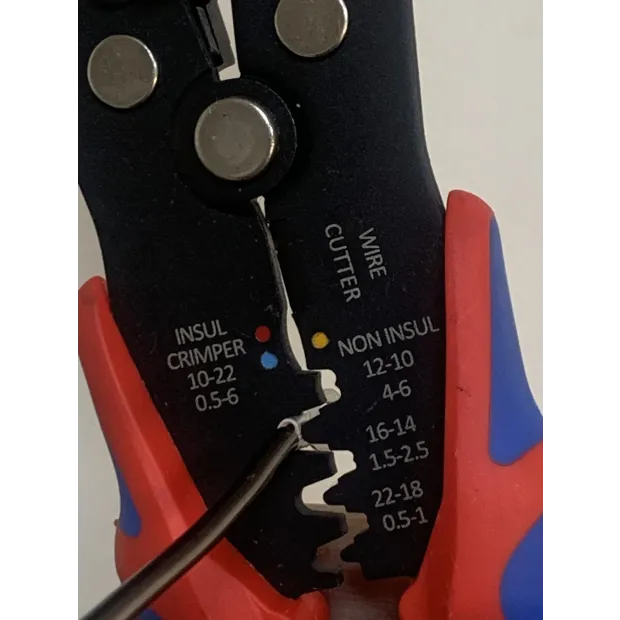

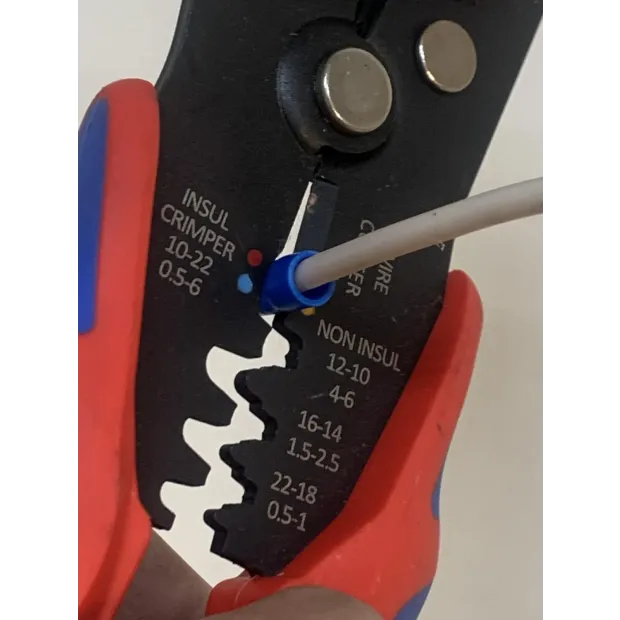

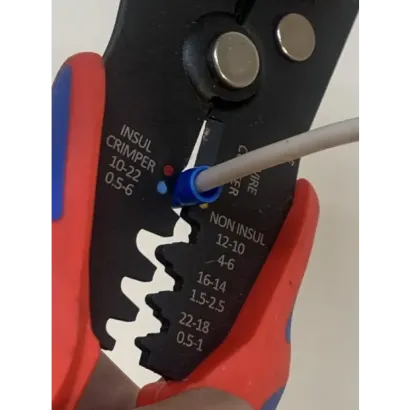

Crimp insulated terminals 10-22AWG (0.5 to 6.0 mm²).
Crimp auto ignition terminals 7 to 8mm

MATERIAL :
Strip part: Powder metallurgy
Body: S50C (HRC45˚)
Handle: TPR


Size : L212mm*W110mm*H31mm

Weight : 343g
